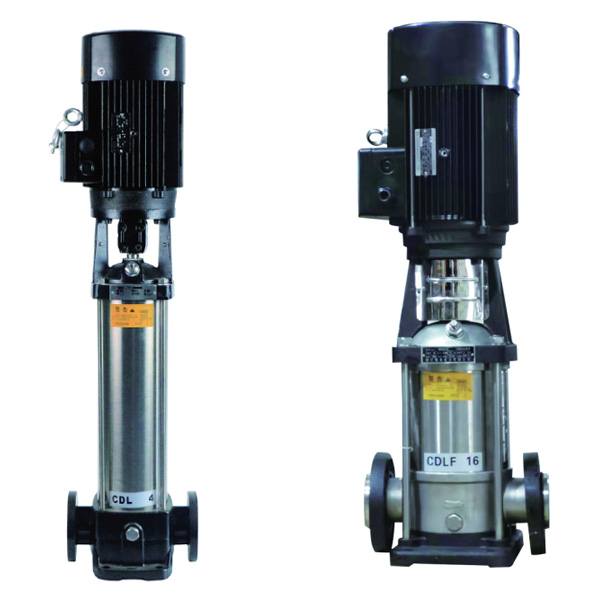

立式多級管道泵

Product Mould Number CDLF

流量: 2-90m³/h
揚程: 15-236m
轉速: 2900r/min
口徑: Φ25mm-Φ100mm
介質溫度: ≤80°C
工作壓力: 最大 2.5MPa

產品詳情

CDL(F)技術參數
型號	流量Q	揚程H	功率	電壓	轉速n	口徑
型號	（m3/h）	(m)	(kw)	(V)	(r/min)	(mm)
25CDL(F)2-80	2	60	1.1	380	2900	25
25CDL(F)2-90	2	67	1.1	380	2900	25
25CDL(F)2-100	2	75	1.1	380	2900	25
25CDL(F)2-110	2	82	1.1	380	2900	25
25CDL(F)2-120	2	90	1.5	380	2900	25
25CDL(F)2-130	2	98	1.5	380	2900	25
25CDL(F)2-140	2	105	1.5	380	2900	25
25CDL(F)2-150	2	112	1.5	380	2900	25
25CDL(F)2-160	2	120	2.2	380	2900	25
25CDL(F)2-170	2	128	2.2	380	2900	25
25CDL(F)2-180	2	136	2.2	380	2900	25
25CDL(F)2-190	2	144	2.2	380	2900	25
25CDL(F)2-200	2	151	2.2	380	2900	25
25CDL(F)2-210	2	158	2.2	380	2900	25
25CDL(F)2-220	2	165	2.2	380	2900	25
25CDL(F)2-230	2	174	3	380	2900	25
25CDL(F)2-240	2	182	3	380	2900	25
25CDL(F)2-250	2	190	3	380	2900	25
25CDL(F)2-260	2	198	3	380	2900	25
32CDL(F)4-50	4	40	1.1	380	2900	32
32CDL(F)4-60	4	48	1.1	380	2900	32
32CDL(F)4-70	4	56	1.5	380	2900	32
32CDL(F)4-80	4	64	1.5	380	2900	32
32CDL(F)4-90	4	72	2.2	380	2900	32
32CDL(F)4-100	4	81	2.2	380	2900	32
32CDL(F)4-110	4	88	2.2	380	2900	32
32CDL(F)4-120	4	95	2.2	380	2900	32
32CDL(F)4-130	4	104	3	380	2900	32
32CDL(F)4-140	4	113	3	380	2900	32
32CDL(F)4-150	4	121	3	380	2900	32
32CDL(F)4-160	4	129	3	380	2900	32
32CDL(F)4-170	4	137	4	380	2900	32
32CDL(F)4-180	4	145	4	380	2900	32
32CDL(F)4-190	4	153	4	380	2900	32
32CDL(F)4-200	4	162	4	380	2900	32
32CDL(F)4-210	4	170	4	380	2900	32
32CDL(F)4-220	4	178	4	380	2900	32
40CDL(F)8-30	8	27	1.1	380	2900	40
40CDL(F)8-40	8	36	1.5	380	2900	40
40CDL(F)8-50	8	45	2.2	380	2900	40
40CDL(F)8-60	8	54	2.2	380	2900	40
40CDL(F)8-70	8	64	3	380	2900	40
40CDL(F)8-80	8	73	3	380	2900	40
40CDL(F)8-90	8	83	4	380	2900	40
40CDL(F)8-100	8	92	4	380	2900	40
40CDL(F)8-110	8	102	4	380	2900	40
40CDL(F)8-120	8	111	4	380	2900	40
40CDL(F)8-130	8	121	5.5	380	2900	40
40CDL(F)8-140	8	130	5.5	380	2900	40
40CDL(F)8-150	8	139	5.5	380	2900	40
40CDL(F)8-160	8	148	5.5	380	2900	40
40CDL(F)8-170	8	158	7.5	380	2900	40
40CDL(F)8-180	8	167	7.7	380	2900	40
40CDL(F)8-190	8	177	7.5	380	2900	40
40CDL(F)8-200	8	186	7.5	380	2900	40
40CDL(F)8-210	8	195	7.5	380	2900	40
40CDL(F)8-220	8	205	7.5	380	2900	40
50CDL(F)12-20	12	20	1.5	380	2900	50
50CDL(F)12-30	12	30	2.2	380	2900	50
50CDL(F)12-40	12	40	3	380	2900	50
50CDL(F)12-50	12	50	3	380	2900	50
50CDL(F)12-60	12	60	4	380	2900	50
50CDL(F)12-70	12	70	5.5	380	2900	50
50CDL(F)12-80	12	80	5.5	380	2900	50
50CDL(F)12-90	12	91	5.5	380	2900	50
50CDL(F)12-100	12	101	7.5	380	2900	50
50CDL(F)12-110	12	111	7.5	380	2900	50
50CDL(F)12-120	12	121	7.5	380	2900	50
50CDL(F)12-130	12	131	11	380	2900	50
50CDL(F)12-140	12	141	11	380	2900	50
50CDL(F)12-150	12	151	11	380	2900	50
50CDL(F)12-160	12	162	11	380	2900	50
50CDL(F)12-170	12	171	11	380	2900	50
50CDL(F)12-180	12	183	11	380	2900	50
50CDL(F)16-20	16	22	2.2	380	2900	50
50CDL(F)16-30	16	34	3	380	2900	50
50CDL(F)16-40	16	46	4	380	2900	50
50CDL(F)16-50	16	58	5.5	380	2900	50
50CDL(F)16-60	16	70	5.5	380	2900	50
50CDL(F)16-70	16	82	7.5	380	2900	50
50CDL(F)16-80	16	94	7.5	380	2900	50
50CDL(F)16-90	16	106	11	380	2900	50
50CDL(F)16-100	16	118	11	380	2900	50
50CDL(F)16-110	16	130	11	380	2900	50
50CDL(F)16-120	16	141	11	380	2900	50
50CDL(F)16-130	16	154	15	380	2950	50
50CDL(F)16-140	16	166	15	380	2950	50
50CDL(F)16-150	16	178	15	380	2950	50
50CDL(F)16-160	16	189	15	380	2950	50
50CDL(F)16-170	16	202	15	380	2950	50
50CDL(F)20-10	20	11	1.1	380	2900	50
50CDL(F)20-20	20	23	2.2	380	2900	50
50CDL(F)20-30	20	35	4	380	2900	50
50CDL(F)20-40	20	47	5.5	380	2900	50
50CDL(F)20-50	20	58	5.5	380	2900	50
50CDL(F)20-60	20	70	7.5	380	2900	50
50CDL(F)20-70	20	82	7.5	380	2900	50
50CDL(F)20-80	20	94	11	380	2900	50
50CDL(F)20-90	20	106	11	380	2900	50
50CDL(F)20-100	20	118	11	380	2900	50
50CDL(F)20-110	20	130	15	380	2950	50
50CDL(F)20-120	20	142	15	380	2950	50
50CDL(F)20-130	20	154	15	380	2950	50
50CDL(F)20-140	20	166	15	380	2950	50
50CDL(F)20-150	20	178	18.5	380	2950	50
50CDL(F)20-160	20	190	18.5	380	2950	50
50CDL(F)20-170	20	202	18.5	380	2950	50
65CDL(F)32-10	32	14	2.2	380	2900	65
65CDL(F)32-20	32	27	4	380	2900	65
65CDL(F)32-30	32	40	5.5	380	2900	65
65CDL(F)32-40	32	53	7.5	380	2900	65
65CDL(F)32-50	32	67	11	380	2900	65
65CDL(F)32-60	32	81	11	380	2900	65
65CDL(F)32-70	32	95	15	380	2950	65
65CDL(F)32-80	32	109	15	380	2950	65
65CDL(F)32-90	32	124	18.5	380	2950	65
65CDL(F)32-100	32	138	18.5	380	2950	65
65CDL(F)32-110	32	153	22	380	2950	65
65CDL(F)32-120	32	167	22	380	2950	65
65CDL(F)32-130	32	181	30	380	2950	65
65CDL(F)32-140	32	196	30	380	2950	65
65CDL(F)32-150	32	210	30	380	2950	65
65CDL(F)32-160	32	225	30	380	2950	65
80CDL(F)45-10	45	19	4	380	2900	80
80CDL(F)45-20	45	39	7.5	380	2900	80
80CDL(F)45-30	45	58	11	380	2900	80
80CDL(F)45-40	45	78	15	380	2950	80
80CDL(F)45-50	45	97	18.5	380	2950	80
80CDL(F)45-60	45	116	22	380	2950	80
80CDL(F)45-70	45	135	30	380	2950	80
80CDL(F)45-80	45	154	30	380	2950	80
80CDL(F)45-90	45	174	37	380	2950	80
80CDL(F)45-100	45	193	37	380	2950	80
80CDL(F)45-110	45	214	45	380	2950	80
80CDL(F)45-120	45	236	45	380	2950	80
100CDL(F)65-10-1	65	13	4	380	2900	100
100CDL(F)65-10	65	20	5.5	380	2900	100
100CDL(F)65-20-2	65	27	7.5	380	2900	100
100CDL(F)65-20-1	65	34	11	380	2900	100
100CDL(F)65-20	65	41	11	380	2900	100
100CDL(F)65-30-2	65	47	15	380	2950	100
100CDL(F)65-30-1	65	54	15	380	2950	100
100CDL(F)65-30	65	61	18.5	380	2950	100
100CDL(F)65-40-2	65	67	18.5	380	2950	100
100CDL(F)65-40-1	65	74	22	380	2950	100
100CDL(F)65-40	65	81	22	380	2950	100
100CDL(F)65-50-2	65	89	30	380	2950	100
100CDL(F)65-50-1	65	95	30	380	2950	100
100CDL(F)65-50	65	103	30	380	2950	100
100CDL(F)65-60-2	65	111	30	380	2950	100
100CDL(F)65-60-1	65	118	37	380	2950	100
100CDL(F)65-60	65	125	37	380	2950	100
100CDL(F)65-70-2	65	133	37	380	2950	100
100CDL(F)65-70-1	65	141	37	380	2950	100
100CDL(F)65-70	65	148	45	380	2950	100
100CDL(F)65-80-2	65	156	45	380	2950	100
100CDL(F)65-80-1	65	163	45	380	2950	100
100CDL(F)90-10-1	90	13	5.5	380	2900	100
100CDL(F)90-10	90	19	7.5	380	2900	100
100CDL(F)90-20-2	90	28	11	380	2900	100
100CDL(F)90-20	90	40	15	380	2950	100
100CDL(F)90-30-2	90	49	18.5	380	2950	100
100CDL(F)90-30	90	62	22	380	2950	100
100CDL(F)90-40-2	90	72	30	380	2950	100
100CDL(F)90-40	90	84	30	380	2950	100
100CDL(F)90-50-2	90	93	37	380	2950	100
100CDL(F)90-50	90	106	37	380	2950	100
100CDL(F)90-60-2	90	117	45	380	2950	100
100CDL(F)90-60	90	130	45	380	2950	100
